MSR Lumber
The Big E and the Five Little f ’s Download as PDF
Engineering Term | Meaning | |
---|---|---|
E (Modulus of Elasticity) | ![]() | How much this sample will deflect under a given load. |

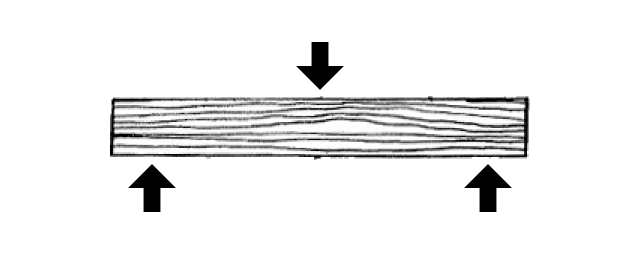

Fb (Extreme fiber stress before failure occurs) | ![]() | How much we can stress a member in bending before permanently rupturing fibers. |

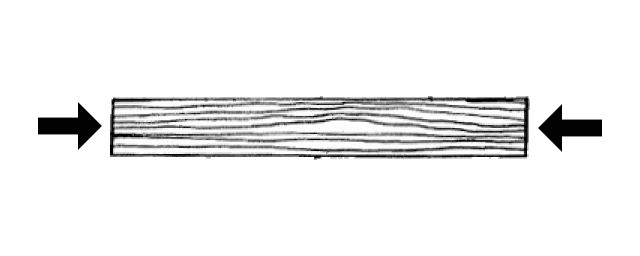

fcii (Compressive strength when loaded parallel to grain) | ![]() | How much load we can put on the member when loaded like this before rupturing fibers. |

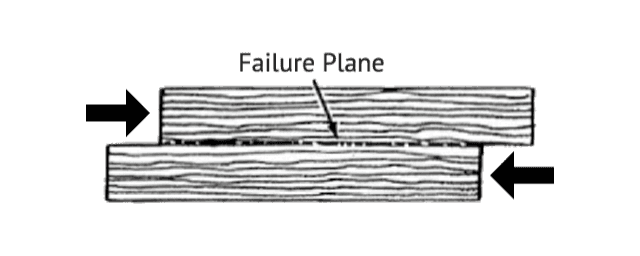

fv (Horizontal shear) | ![]() | How much load we can apply as shown before material will fail along the indicated failure plane. |
ft (Tensile strength parallel to grain) | ![]() | How much tension we can put this member under before failure. |

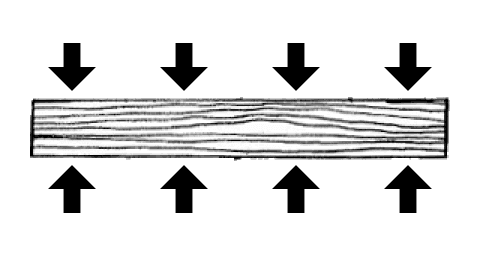

Fc⊥ (Compressive strength loaded perpendicular to grain) | ![]() | How much load we can apply in this manner before actual crushing. |
